This automotive equipment is primarily used for the remachining of outwork brake drum and discs to achieve flawless fresh surface. Easy to use, durable and accurate yet affordable. Its capacity makes it useful for both large and medium engine overhauling workshops. The economical BS-850 is ideal for the small Tyre & brake service shop for its space saving features.
The basic components of the machine are of engineering Cast iron and other alloys of high resistance to wear and vibration. The Dovetail slideways are ground and adjustable steel gibs are incorporated for a smooth sliding medium. main arbor, supported by precision taper roller bearings, is powered by the sealed oil-bath gear box. Multiple speeds of arbor along with feed-speeds for both drums and discs are available. The quality of surface finish through BS-850 is achieved with Titanium coated carbide cutting inserts supplied with the machine.
|
SPECIFICATIONS |
||
|
Diameter for brake drum operation |
150 upto 600 |
mm |
|
Machine able depth of drum, Max. |
150 |
mm |
|
Feeds for brake drums turning |
.012 & .030 |
mm/rev. |
|
Diameter fro brake disc operation |
150 upto 500 |
mm |
|
Thickness of brake disc, Max. |
50 |
mm |
|
Feed for brake discs operation |
0.75 |
mm/rev. |
|
Arbor speeds |
55, 76, 114 |
rpm |
|
Arbor diameter |
28 |
mm |
|
Motor (220V 50Hz lph) |
0.5 |
kW |
|
Overall length approximate |
1050 |
mm |
|
Overall Height approximate |
1600 |
mm |
|
Overall Width approximate |
870 |
mm |
|
Overall Mass approximate |
270 |
Kg |
|
STANDARD EQUIPMENTS |
|
|
BS0010 |

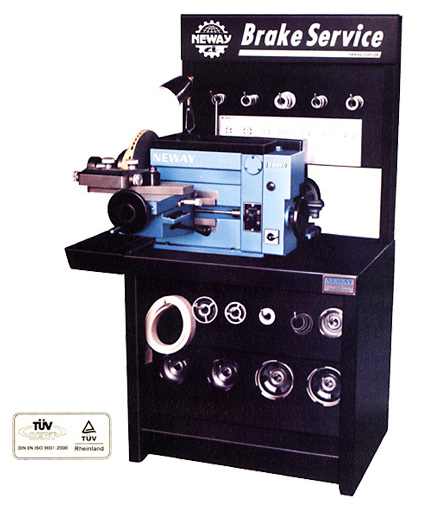

Steel cabinet complete as illustrated |
|
BS0020 |
Electric motor with switch and cord |
|
BS0030 |
Disc Aligner, equipment for disc turning |
|
BS0040 |
Tool Post, equipment for drum turning |
|
BS0050 |
Pair of one sided collets |
|
BS0060 |
Pair of two sided collets |
|
BS0070 |
Split Collet for medium hubs |
|
BS0080 |
Split Collet for large hubs |
|
BS0090 |
Self aligning arbor locking nut, mounted |
|
BS0100 |
Set of spacers (03 nos.) |
|
BS0200 |
Set of Cutting tools with carbide inserts |
|
BS0300 |
Drum fixing cones (03 nos.) |
|
BS0400 |
Set of face plates for drums and discs (05 nos.) |
|
BS0500 |
Silencer / dampener band for drums |
|
BS0600 |
Electric lamp, mounted |
|
BS0700 |
|
|
EXTRA EQUIPMENTS |
|
|
BSX001 |
Carbide inserts for BS0040 and BS0030 |
|
BSX002 |
Micrometer for Discs range 0 to 50mm |
|
BSX003 |
Micrometer for Drums range 150 to 350mm |
|
BSX004 |
|
Please specify colour and voltage of your choice along with the extra equipments at the time of placing an order.
All data, weight and dimensions are not fix and can be modified without prior notice.
