(Complete with Standard and Optional Equipments)

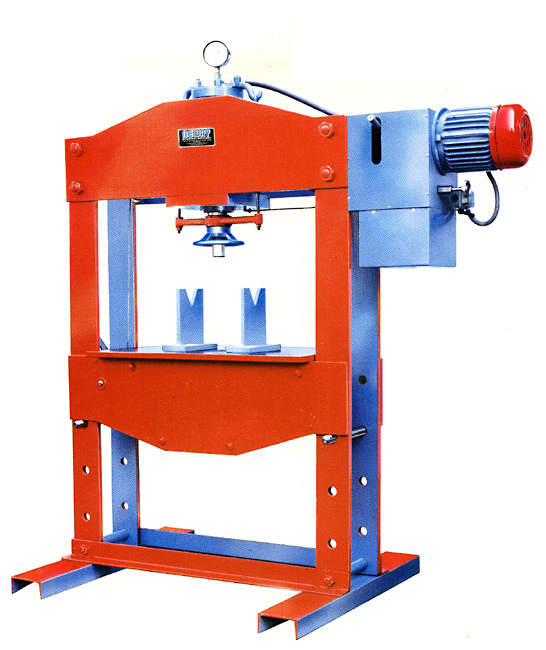

Universal shop presses are suitable for Straightening and Bending Bulky Parts such as Crankshafts, Rolling Components and Equipments for Earth Moving Machines. They are also used to extract or insert cylinder liners, Hubs, Bushings, Tracks, Bearings, Wheels etc.
They are very easy to operate either by hand or with Motor. Standard Models are fitted with two stage Hydraulic Pump for Hand Operation.
|
SPECIFICATIONS |
||||
|
|
|
HSP-25 |
HSP-50 |
HSP-100 |
|
Max. Ram Thrust |
Ton |
25 |
50 |
100 |
|
Ram Travel |
mm |
254 |
340 |
305 |
|
Travel of Table (Up & Down) |
mm |
711 |
762 |
915 |
|
Size of Work Table |
mm |
660X406 |
965X559 |
1244X610 |
|
Width Between Uprights |
mm |
610 |
970 |
1219 |
|
Motor (Extra) |
HP |
2 |
2 |
3 |
|
Height (Approx) |
mm |
1676 |
1829 |
2108 |
|
Width (Approx) |
mm |
1219 |
1727 |
1829 |
|
Depth (Approx) |
mm |
508 |
610 |
711 |
|
Weight Unpacked (Approx) |
Kg |
500 |
745 |
1000 |
1. V-Blocks for Straightening Purposes
2. Motor for Electrical Operations
3. Sliding Ram for Different positions of Ram to Work on Odd Shapes.
These Presses can be custom made to any capacity (Ton) to meet special requirements.
Please specify colour and voltage of your choice along with the extra equipments at the time of placing an order.
All data, weight and dimensions are not fix and can be modified without prior notice.
